Rohn 25G90R050

$3,469.00
OR
Quick Overview
Guyed Tower Package
• Handles up to 21.4 sq. ft.
• Rated at 90 MPH
• Complete Package
• Shipped Direct to Save Freight Cost

Rohn 25G90R050

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Rohn 25G90R050

Details

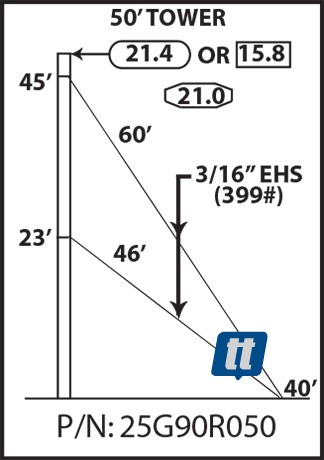

The Rohn 25G90R050 is a complete 50' guyed tower package. Supports up to 21.4 square feet of antenna load. Includes 4-25G, 1-25AG2, 1-BPC25G, 2-GA25GD, 350'-3/16"EHS, 12-BG2142, 12-5/16"TH, 6-1/2TBE&J, 3-TBSAFETY, 3-GAC3455TOP, 1-AGK1GGX, 3-BGK3GGX, 3-CPC.5/.75, 1-3/4X12PP and all assembly hardware. PLEASE NOTE: Rohn tower packages are drop shipped directly from the factory to reduce freight cost. Typical delivery time runs approximately 6 weeks.
ROHN 25G90R050 TECHNICAL SPECIFICATIONS
height50'
section width12"
section height10'
section weight40 pounds
base footing2'6" x 2'6" x 4', (1 cu. yd.)
anchor footings (3)1'6" x 4' x 6', (1.33 cu. yds.)
windload capacity, 90 MPH (Revision F)21 sq. ft.
windload capacity, 90 MPH (Revision G, Exp. B)21.4 sq. ft.
windload capacity, 90 MPH (Revision G, Exp. C)15.8 sq. ft.
package weight303 pounds
