Details

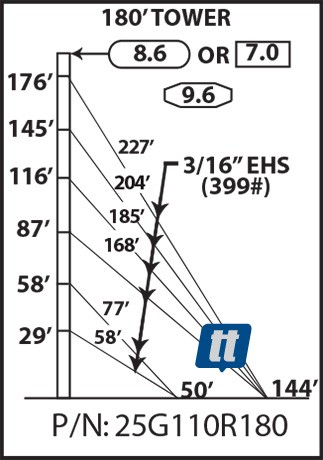

The Rohn 25G110R180 is a complete 180' guyed tower package. Supports up to 9.6 square feet of antenna load. Includes 17-25G, 1-25AG2, 1-BPC25G, 6-GA25GD, 2925'-3/16"EHS, 36-BG2142, 36-5/16"TH, 18-1/2TBE&J, 6-TBSAFETY, 6-GAC3455TOP, 2-AGK1GGX, 3-BGK3GGX, 6-CPC.5/.75, 1-3/4X12PP and all assembly hardware. PLEASE NOTE: Rohn tower packages are drop shipped directly from the factory to reduce freight cost. Typical delivery time runs approximately 6 weeks.
Check items to add to the cart or select all
| ROHN 25G110R180 TECHNICAL SPECIFICATIONS | |
| height | 180' |
| section width | 12" |
| section height | 10' |
| section weight | 40 pounds |
| base footing | 3'R x 4'D, (1.2 cu. yds.) |
| anchor footings (6) | 1'6"x4'x6', (1.33 cu. yds.) |
| windload capacity, 110 MPH (Revision F) | 9.6 sq. ft. |
| windload capacity, 110 MPH (Revision G, Exp. B) | 8.6 sq. ft. |
| windload capacity, 110 MPH (Revision G, Exp. C) | 7 sq. ft. |
| package weight | 1321 pounds |
