Rohn 45G90R100

Availability: In stock

$4,199.00
OR
Quick Overview
Guyed Tower Package
• Handles up to 24.3sq. ft.
• Rated at 90 MPH
• Complete Package
• Shipped Direct to Save Freight Cost

Rohn 45G90R100

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Rohn 45G90R100

Details

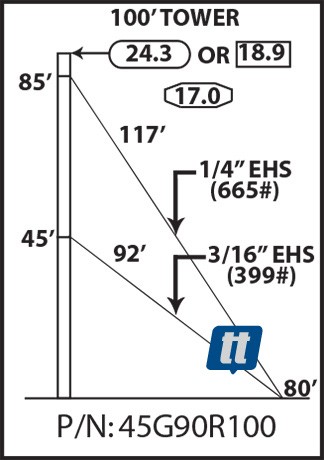

The Rohn 45G90R100 is a complete 100' guyed tower package. Supports up to 24.3 square feet of antenna load. Includes 9-45G, 1-45AG2, 1-BPC45G, 2-GA45GD, 300'-3/16"EHS, 375'-1/4"EHS, 6-BG2142, 6-BG2144, 6-5/16"TH, 6-3/8"TH, 6-1/2TBE&J, 3-TBSAFETY, 3-GAC3455TOP, 1-AGK1GGX, 3-BGK3GGX, 3-CPC.5/.75, 1-3/4X12PP and all assembly hardware. PLEASE NOTE: Rohn tower packages are drop shipped directly from the factory to reduce freight cost. Typical delivery time runs approximately 2 weeks.
ROHN 45G90R100 TECHNICAL SPECIFICATIONS
height100'
section width18"
section height10'
section weight70 pounds
base footing2'6" x 2'6" x 4', (1 cu. yd.)
anchor footings (3)1'6" x 4' x 6', (1.33 cu. yds.)
windload capacity, 90 MPH (Revision F)17 sq. ft.
windload capacity, 90 MPH (Revision G, Exp. B)24.3 sq. ft.
windload capacity, 90 MPH (Revision G, Exp. C)18.9 sq. ft.
package weight983 pounds
