Rohn 45G110R180

$11,399.00
OR
Quick Overview
Guyed Tower Package
• Handles up to 13.8 sq. ft.
• Rated at 110 MPH
• Complete Package
• Shipped Direct to Save Freight Cost

Rohn 45G110R180

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Rohn 45G110R180

Details

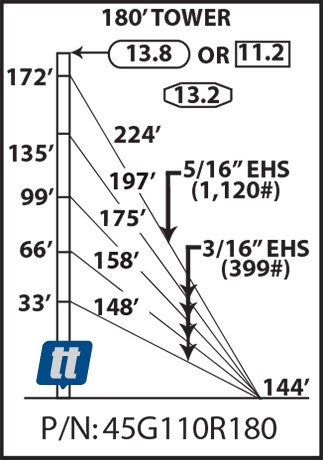

The Rohn 45G110R180 is a complete 180' guyed tower package. Supports up to 13.8 square feet of antenna load. Includes 17-45G, 1-45GL2, 1-APL45G, 1-BPC45G, 5-GA45GD, 2175'-3/16"EHS, 725'-5/16"EHS, 24-BG2142, 6-BG2146, 24-5/16"TH, 6-7/16"TH, 15-5/8TBE&J, 3-TBSAFETY, 3-GAC3455TOP, 1-AGK1GGX, 3-BGK3GGX, 3-CPC1/1.25, 1-3/4X12PP and all assembly hardware. PLEASE NOTE: Rohn tower packages are drop shipped directly from the factory to reduce freight cost. Typical delivery time runs approximately 6 weeks.
ROHN 45G110R180 TECHNICAL SPECIFICATIONS
height180'
section width18"
section height10'
section weight70 pounds
base footing3' x 3' x 4', (1.2 cu. yds.)
anchor footings (3)1'6" x 3' x 6', (1 cu. yd.)
windload capacity, 110 MPH (Revision F)13.2 sq. ft.
windload capacity, 110 MPH (Revision G, Exp. B)13.8 sq. ft.
windload capacity, 110 MPH (Revision G, Exp. C)11.2 sq. ft.
package weight2040 pounds
