Rohn 25G90R180

$5,899.00
OR
Quick Overview
Guyed Tower Package
• Handles up to 15.8 sq. ft.
• Rated at 90 MPH
• Complete Package
• Shipped Direct to Save Freight Cost

Rohn 25G90R180

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Rohn 25G90R180

Details

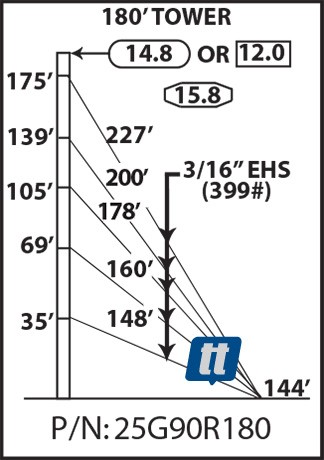

The Rohn 25G90R180 is a complete 180' guyed tower package. Supports up to 15.8 square feet of antenna load. Includes 17-25G, 1-25AG2, 1-BPC25G, 5-GA25GD, 2925'-3/16"EHS, 30-BG2142, 30-5/16"TH, 15-1/2TBE&J, 3-TBSAFETY, 3-GAC3455TOP, 1-AGK1GGX, 3-BGK3GGX, 3-CPC.5/.75, 1-3/4X12PP and all assembly hardware. PLEASE NOTE: Rohn tower packages are drop shipped directly from the factory to reduce freight cost. Typical delivery time runs approximately 2 weeks.
ROHN 25G90R180 TECHNICAL SPECIFICATIONS
height180'
section width12"
section height10'
section weight40 pounds
base footing2'6" x 2'6" x 4', (1 cu. yd.)
anchor footings (3)1'6" x 4' x 6', (1.33 cu. yds.)
windload capacity, 90 MPH (Revision F)15.8 sq. ft.
windload capacity, 90 MPH (Revision G, Exp. B)14.8 sq. ft.
windload capacity, 90 MPH (Revision G, Exp. C)12 sq. ft.
package weight1756 pounds
