Rohn RSL50H60

$3,139.00
OR
Quick Overview
• 50’ Height
• Handles up to 80 sq. ft.
• Constructed of hot-dip galvanized steel

Rohn RSL50A60

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Rohn RSL50A60

Details

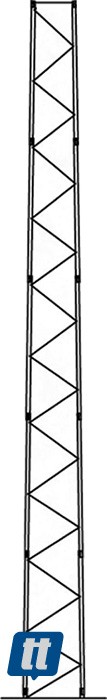

The Rohn RSL50H60 is a heavy duty 50' self-supporting tower designed for use in broadband, public safety and security applications, reaching above line-of-site obstacles such as tree tops, hilly terrain and buildings. Shipped knocked-down to reduce shipping cost and time. PLEASE NOTE: Rohn RSL towers are drop shipped directly from the factory to save you money. Typical delivery time runs approximately 6 weeks.
Rohn RSL50H60 TECHNICAL SPECIFICATIONS
height50'
section size, top36"
section size, bottom51"
base footing10' x 10' x 4'4", (16 cu yds.)
windload capacity, 90 MPH (Cat. 1/Exp. B)80 sq. ft.
windload capacity, 100 MPH (Cat. 1/Exp. B)80 sq. ft.
windload capacity, 110 MPH (Cat. 1/Exp. B)80 sq. ft.
windload capacity, 120 MPH (Cat. 1/Exp. B)80 sq. ft.
windload capacity, 130 MPH (Cat. 1/Exp. B)80 sq. ft.
windload capacity, 140 MPH (Cat. 1/Exp. B)80 sq. ft.
windload capacity, 90 MPH (Cat. 1/Exp. C)80 sq. ft.
windload capacity, 100 MPH (Cat. 1/Exp. C)80 sq. ft.
windload capacity, 110 MPH (Cat. 1/Exp. C)80 sq. ft.
windload capacity, 120 MPH (Cat. 1/Exp. C)80 sq. ft.
windload capacity, 130 MPH (Cat. 1/Exp. C)65 sq. ft.
windload capacity, 140 MPH (Cat. 1/Exp. C)51 sq. ft.
weight975 pounds
