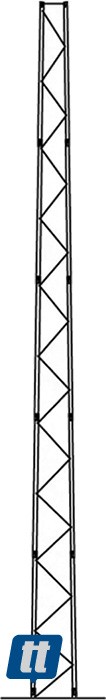

The Rohn RSL50H15 is a heavy duty 50' self-supporting tower designed for use in broadband, public safety and security applications, reaching above line-of-site obstacles such as tree tops, hilly terrain and buildings. Shipped knocked-down to reduce shipping cost and time. PLEASE NOTE: Rohn RSL towers are drop shipped directly from the factory to save you money. Typical delivery time runs approximately 6 weeks.
Check items to add to the cart or select all
| Rohn RSL50H15 TECHNICAL SPECIFICATIONS | |
| height | 50' |
| section size, top | 21" |
| section size, bottom | 39" |
| base footing | 8'3" x 8'3" x 4'4", (10.9 cu. yds.) |
| windload capacity, 90 MPH (Cat. 1/Exp. B) | 80 sq. ft. |
| windload capacity, 100 MPH (Cat. 1/Exp. B) | 80 sq. ft. |
| windload capacity, 110 MPH (Cat. 1/Exp. B) | 76 sq. ft. |
| windload capacity, 120 MPH (Cat. 1/Exp. B) | 60 sq. ft. |
| windload capacity, 130 MPH (Cat. 1/Exp. B) | 47 sq. ft. |
| windload capacity, 140 MPH (Cat. 1/Exp. B) | 37 sq. ft. |
| windload capacity, 90 MPH (Cat. 1/Exp. C) | 80 sq. ft. |
| windload capacity, 100 MPH (Cat. 1/Exp. C) | 66 sq. ft. |
| windload capacity, 110 MPH (Cat. 1/Exp. C) | 50 sq. ft. |
| windload capacity, 120 MPH (Cat. 1/Exp. C) | 38 sq. ft. |
| windload capacity, 130 MPH (Cat. 1/Exp. C) | 28 sq. ft. |
| windload capacity, 140 MPH (Cat. 1/Exp. C) | 21 sq. ft. |
| weight | 765 pounds |
