Rohn RSL30H13

$1,729.00
OR
Quick Overview
• 30’ Height
• Handles up to 80 sq. ft.
• Constructed of hot-dip galvanized steel

Rohn RSL30A13

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Rohn RSL30A13

Details

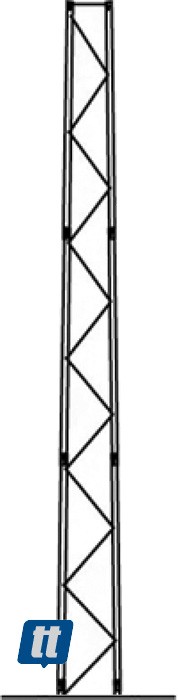

The Rohn RSL30H13 is a heavy duty 30' self-supporting tower designed for use in broadband, public safety and security applications, reaching above line-of-site obstacles such as tree tops, hilly terrain and buildings. Shipped knocked-down to reduce shipping cost and time. PLEASE NOTE: Rohn RSL towers are drop shipped directly from the factory to save you money. Typical delivery time runs approximately 6 weeks.
Rohn RSL30H13 TECHNICAL SPECIFICATIONS
height30'
section size, top21"
section size, bottom30"
base footing7'9" x 7'9" x 4'4", (9.6 cu. yds.)
windload capacity, 90 MPH (Cat. 1/Exp. B)80 sq. ft.
windload capacity, 100 MPH (Cat. 1/Exp. B)80 sq. ft.
windload capacity, 110 MPH (Cat. 1/Exp. B)80 sq. ft.
windload capacity, 120 MPH (Cat. 1/Exp. B)80 sq. ft.
windload capacity, 130 MPH (Cat. 1/Exp. B)80 sq. ft.
windload capacity, 140 MPH (Cat. 1/Exp. B)80 sq. ft.
windload capacity, 90 MPH (Cat. 1/Exp. C)80 sq. ft.
windload capacity, 100 MPH (Cat. 1/Exp. C)80 sq. ft.
windload capacity, 110 MPH (Cat. 1/Exp. C)80 sq. ft.
windload capacity, 120 MPH (Cat. 1/Exp. C)80 sq. ft.
windload capacity, 130 MPH (Cat. 1/Exp. C)70 sq. ft.
windload capacity, 140 MPH (Cat. 1/Exp. C)58 sq. ft.
weight457 pounds
