Rohn RAL06

Quick Overview
Concrete Anchor Base

Rohn RAL06

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Rohn RAL06

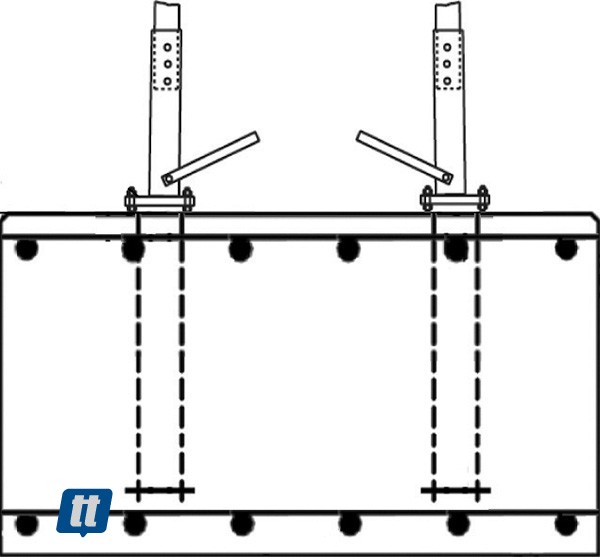

The Rohn RAL06 is an anchor base for Rohn RSL towers. Includes full-size template, anchor bolt lower template, anchor bolts and leg stubs. Base design utilizes double lower nuts to allow for leveling. Required concrete footing size is 8'6" x 8'6" x 4'4" (11.6 cu. yds.). PLEASE NOTE: This item is drop shipped directly from the factory to save you money. Typical delivery time runs approximately 6 weeks.
