Details

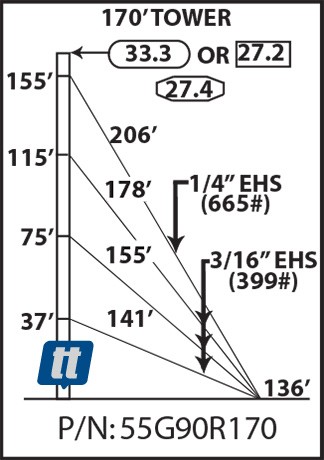

The Rohn 55G90R170 is a complete 170' guyed tower package. Supports up to 33.3 square feet of antenna load. Includes 17-55G, 1-BPC55G, 1-APL55G, 4-GA55GD, 1525'-3/16"EHS, 675'-1/4"EHS, 18-BG2142, 6-BG2144, 18-5/16"TH, 6-3/8"TH, 12-1/2TBE&J, 3-TBSAFETY, 3-GAC3455TOP, 1-AGK1GGX, 3-BGK3GGX, 3-CPC.5/.75, 1-3/4X12PP and all assembly hardware. PLEASE NOTE: Rohn tower packages are drop shipped directly from the factory to reduce freight cost. Typical delivery time runs approximately 6 weeks.
ROHN 55G90R170 TECHNICAL SPECIFICATIONS | |
height | 170' |
section width | 18" |
section height | 10' |
section weight | 100 pounds |
base footing | 3' x 3' x 4', (1.2 cu. yds.) |
anchor footings (3) | 1'6" x 4' x 6', (1.33 cu. yds.) |
windload capacity, 90 MPH (Revision F) | 27.4 sq. ft. |
windload capacity, 90 MPH (Revision G, Exp. B) | 33.3 sq. ft. |
windload capacity, 90 MPH (Revision G, Exp. C) | 27.2 sq. ft. |
package weight | 2352 pounds |
