Rohn 55G90R150

$10,359.00
OR
Quick Overview
Guyed Tower Package
• Handles up to 34.7 sq. ft.
• Rated at 90 MPH
• Complete Package
• Shipped Direct to Save Freight Cost

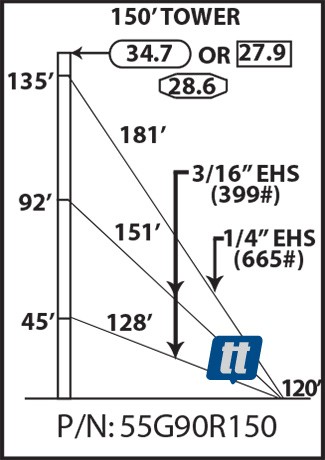

Rohn 55G90R150

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Rohn 55G90R150

Details

The Rohn 55G90R150 is a complete 150' guyed tower package. Supports up to 34.7 square feet of antenna load. Includes 15-55G, 1-BPC55G, 1-APL55G, 3-GA55GD, 900'-3/16"EHS, 600'-1/4"EHS, 12-BG2142, 6-BG2144, 12-5/16"TH, 6-3/8"TH, 9-1/2TBE&J, 3-TBSAFETY, 3-GAC3455TOP, 1-AGK1GGX, 3-BGK3GGX, 3-CPC.5/.75, 1-3/4X12PP and all assembly hardware. PLEASE NOTE: Rohn tower packages are drop shipped directly from the factory to reduce freight cost. Typical delivery time runs approximately 6 weeks.
ROHN 55G90R150 TECHNICAL SPECIFICATIONS
height150'
section width18"
section height10'
section weight100 pounds
base footing3' x 3' x 4', (1.2 cu. yds.)
anchor footings (3)1'6" x 4' x 6', (1.33 cu. yds.)
windload capacity, 90 MPH (Revision F)28.6 sq. ft.
windload capacity, 90 MPH (Revision G, Exp. B)34.7 sq. ft.
windload capacity, 90 MPH (Revision G, Exp. C)27.9 sq. ft.
package weight2012 pounds
