Details

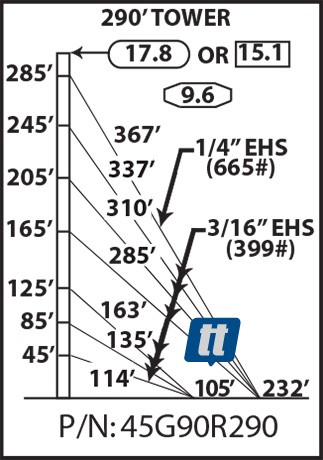

The Rohn 45G90R290 is a complete 290' guyed tower package. Supports up to 17.8 square feet of antenna load. Includes 29-45G, 1-APL45G, 1-BPC45G, 7-GA45GD, 4275'-3/16"EHS, 1175'-1/4"EHS, 36-BG2142, 6-BG2144, 36-5/16"TH, 6-3/8"TH, 21-1/2TBE&J, 6-TBSAFETY, 6-GAC3455TOP, 2-AGK1GGX, 3-BGK3GGX, 6-CPC.5/.75, 1-3/4X12PP and all assembly hardware. PLEASE NOTE: Rohn tower packages are drop shipped directly from the factory to reduce freight cost. Typical delivery time runs approximately 6 weeks.
ROHN 45G90R290 TECHNICAL SPECIFICATIONS | |
height | 290' |
section width | 18" |
section height | 10' |
section weight | 70 pounds |
base footing | 3'6" x 3'6" x 4', (1.6 cu. yd.) |
anchor footings (6) | 1'6" x 4' x 6', (1.33 cu. yds.) |
windload capacity, 90 MPH (Revision F) | 9.6 sq. ft. |
windload capacity, 90 MPH (Revision G, Exp. B) | 17.8 sq. ft. |
windload capacity, 90 MPH (Revision G, Exp. C) | 15.1 sq. ft. |
package weight | 3169 pounds |
