Details

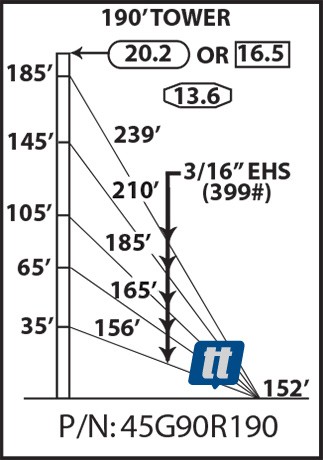

The Rohn 45G90R190 is a complete 190' guyed tower package. Supports up to 20.2 square feet of antenna load. Includes 18-45G, 1-45AG2, 1-BPC45G, 5-GA45GD, 3050'-3/16"EHS, 30-BG2142, 30-5/16"TH, 15-1/2TBE&J, 3-TBSAFETY, 3-GAC3455TOP, 1-AGK1GGX, 3-BGK3GGX, 3-CPC.5/.75, 1-3/4X12PP and all assembly hardware. PLEASE NOTE: Rohn tower packages are drop shipped directly from the factory to reduce freight cost. Typical delivery time runs approximately 6 weeks.
Check items to add to the cart or select all
| ROHN 45G90R190 TECHNICAL SPECIFICATIONS | |
| height | 190' |
| section width | 18" |
| section height | 10' |
| section weight | 70 pounds |
| base footing | 2'6" x 2'6" x 4', (1 cu. yd.) |
| anchor footings (3) | 1'6" x 4' x 6', (1.33 cu. yds.) |
| windload capacity, 90 MPH (Revision F) | 13.6 sq. ft. |
| windload capacity, 90 MPH (Revision G, Exp. B) | 20.2 sq. ft. |
| windload capacity, 90 MPH (Revision G, Exp. C) | 16.5 sq. ft. |
| package weight | 2059 pounds |
