Details

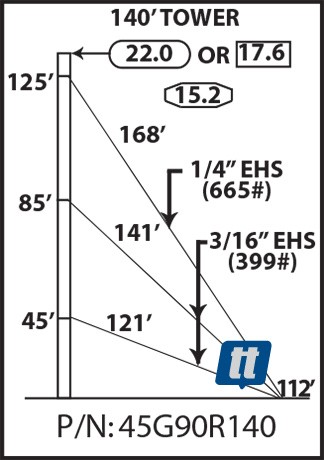

The Rohn 45G90R140 is a complete 140' guyed tower package. Supports up to 22 square feet of antenna load. Includes 13-45G, 1-45AG2, 1-BPC45G, 3-GA45GD, 850'-3/16"EHS, 550'-1/4"EHS, 12-BG2142, 6-BG2144, 12-5/16"TH, 6-3/8"TH, 9-1/2TBE&J, 3-TBSAFETY, 3-GAC3455TOP, 1-AGK1GGX, 3-BGK3GGX, 3-CPC.5/.75, 1-3/4X12PP and all assembly hardware. PLEASE NOTE: Rohn tower packages are drop shipped directly from the factory to reduce freight cost. Typical delivery time runs approximately 6 weeks.
ROHN 45G90R140 TECHNICAL SPECIFICATIONS | |
height | 140' |
section width | 18" |
section height | 10' |
section weight | 70 pounds |
base footing | 2'6" x 2'6" x 4', (1 cu. yd.) |
anchor footings (3) | 1'6" x 4' x 6', (1.33 cu. yds.) |
windload capacity, 90 MPH (Revision F) | 15.2 sq. ft. |
windload capacity, 90 MPH (Revision G, Exp. B) | 22 sq. ft. |
windload capacity, 90 MPH (Revision G, Exp. C) | 17.6 sq. ft. |
package weight | 1453 pounds |
