Details

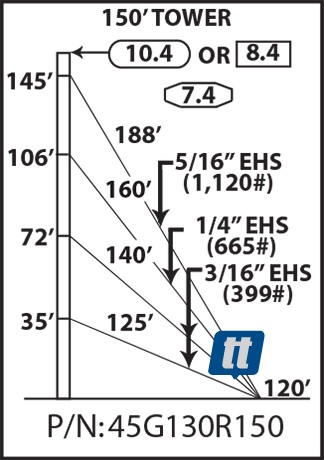

The Rohn 45G130R150 is a complete 150' guyed tower package. Supports up to 10.4 square feet of antenna load. Includes 14-45G, 1-45GL5, 1-BPC45G, 1-APL45G, 4-GA45GD, 850'-3/16"EHS, 525'-1/4"EHS, 600'-5/16"EHS, 12-BG2142, 6-BG2144, 6-BG2146, 12-5/16"TH, 6-3/8"TH, 6-7/16"TH, 12-5/8TBE&J, 3-TBSAFETY, 3-GAC3455TOP, 1-AGK1GGX, 3-BGK3GGX, 3-CPC1/1.25, 1-3/4X12PP and all assembly hardware. PLEASE NOTE: Rohn tower packages are drop shipped directly from the factory to reduce freight cost. Typical delivery time runs approximately 6 weeks.
ROHN 45G130R150 TECHNICAL SPECIFICATIONS | |
height | 150' |
section width | 18" |
section height | 10' |
section weight | 70 pounds |
base footing | 3' x 3' x 4', (1.2 cu. yds.) |
anchor footings (3) | 1'6" x 3' x 6', (1 cu. yd.) |
windload capacity, 130 MPH (Revision F) | 7.4 sq. ft. |
windload capacity, 130 MPH (Revision G, Exp. B) | 10.4 sq. ft. |
windload capacity, 130 MPH (Revision G, Exp. C) | 8.4 sq. ft. |
package weight | 1644 pounds |
