Details

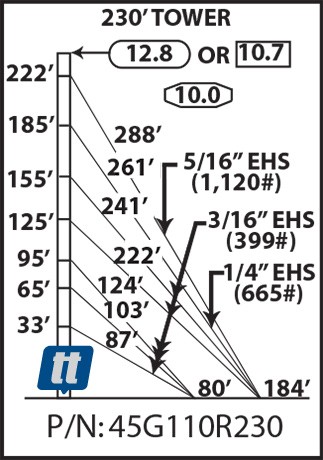

The Rohn 45G110R230 is a complete 230' guyed tower package. Supports up to 12.8 square feet of antenna load. Includes 22-45G, 1-45GL2, 1-BPC45G, 1-APL45G, 7-GA45GD, 2475'-3/16"EHS, 850'-1/4"EHS, 925'-5/16"EHS, 30-BG2142, 6-BG2144, 6-BG2146, 30-5/16"TH, 6-3/8"TH, 6-7/16"TH, 9-1/2TBE&J, 12-5/8TBE&J, 6-TBSAFETY, 6-GAC3455TOP, 2-AGK1GGX, 3-BGK3GGX, 3-CPC.5/.75, 3-CPC1/1.25, 1-3/4X12PP and all assembly hardware. PLEASE NOTE: Rohn tower packages are drop shipped directly from the factory to reduce freight cost. Typical delivery time runs approximately 6 weeks.
Check items to add to the cart or select all
| ROHN 45G110R230 TECHNICAL SPECIFICATIONS | |
| height | 230' |
| section width | 18" |
| section height | 10' |
| section weight | 70 pounds |
| base footing | 3' x 3' x 4', (1.2 cu. yds.) |
| inner anchor footings (3) | 1'6" x 4' x 6', (1.33 cu. yds.) |
| outer anchor footings (3) | 1'6" x 3' x 6', (1 cu. yd.) |
| windload capacity, 110 MPH (Revision F) | 10 sq. ft. |
| windload capacity, 110 MPH (Revision G, Exp. B) | 12.8 sq. ft. |
| windload capacity, 110 MPH (Revision G, Exp. C) | 10.7 sq. ft. |
| package weight | 2724 pounds |
