Rohn 45G110R210

$12,599.00
OR
Quick Overview
Guyed Tower Package
• Handles up to 13.2 sq. ft.
• Rated at 110 MPH
• Complete Package
• Shipped Direct to Save Freight Cost

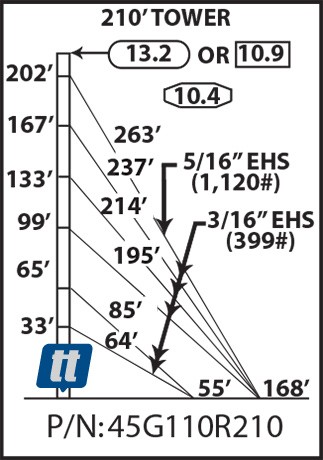

Rohn 45G110R210

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Rohn 45G110R210

Details

The Rohn 45G110R210 is a complete 210' guyed tower package. Supports up to 13.2 square feet of antenna load. Includes 20-45G, 1-45GL2, 1-BPC45G, 1-APL45G, 6-GA45GD, 2550'-3/16"EHS, 850'-5/16"EHS, 20-BG2142, 6-BG2146, 30-5/16"TH, 6-7/16"TH, 15-5/8TBE&J, 3-TBSAFETY, 3-GAC3455TOP, 1-AGK1GGX, 3-BGK3GGX, 3-CPC1/1.25, 1-3/4X12PP and all assembly hardware. PLEASE NOTE: Rohn tower packages are drop shipped directly from the factory to reduce freight cost. Typical delivery time runs approximately 6 weeks.
ROHN 45G110R210 TECHNICAL SPECIFICATIONS
height210'
section width18"
section height10'
section weight70 pounds
base footing3' x 3' x 4', (1.2 cu. yds.)
inner anchor footings (3)1'6" x 4' x 6', (1.33 cu. yds.)
outer anchor footings (3)1'6" x 3' x 6', (1 cu. yd.)
windload capacity, 110 MPH (Revision F)10.4 sq. ft.
windload capacity, 110 MPH (Revision G, Exp. B)13.2 sq. ft.
windload capacity, 110 MPH (Revision G, Exp. C)11 sq. ft.
package weight2442 pounds
