Rohn 45G110R070

Quick Overview
Guyed Tower Package
• Handles up to 18.2 sq. ft.
• Rated at 110 MPH
• Complete Package
• Shipped Direct to Save Freight Cost

Rohn 45G110R070

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Rohn 45G110R070

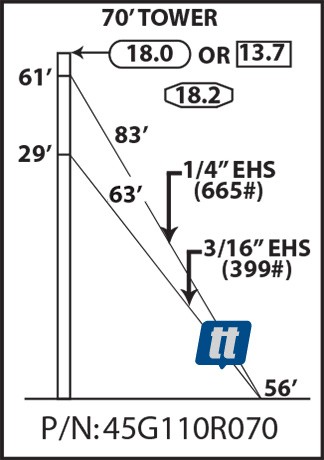

The Rohn 45G110R070 is a complete 70' guyed tower package. Supports up to 18.2 square feet of antenna load. Includes 6-45G, 1-45AG2, 1-BPC45G, 2-GA45GD, 225'-3/16"EHS, 275'-1/4"EHS, 6-BG2142, 6-BG2144, 6-5/16"TH, 6-3/8"TH, 6-1/2TBE&J, 3-TBSAFETY, 3-GAC3455TOP, 1-AGK1GGX, 3-BGK3GGX, 3-CPC.5/.75, 1-3/4X12PP and all assembly hardware. PLEASE NOTE: Rohn tower packages are drop shipped directly from the factory to reduce freight cost. Typical delivery time runs approximately 6 weeks.
section width18"
section height10'
section weight70 pounds
base footing2'6" x 2'6" x 4', (1 cu. yd.)
anchor footings (3)1'6" x 4' x 6', (1.33 cu. yds.)
windload capacity, 110 MPH (Revision F)18.2 sq. ft.
windload capacity, 110 MPH (Revision G, Exp. B)18 sq. ft.
windload capacity, 110 MPH (Revision G, Exp. C)13.7 sq. ft.
package weight827 pounds
