Rohn 25G90R130

$6,179.00
OR
Quick Overview
Guyed Tower Package
• Handles up to 17 sq. ft.
• Rated at 90 MPH
• Complete Package
• Shipped Direct to Save Freight Cost

Rohn 25G90R130

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Rohn 25G90R130

Details

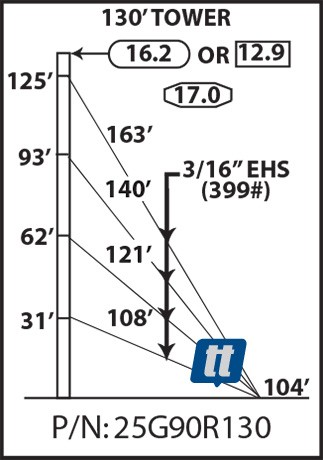

The Rohn 25G90R130 is a complete 130' guyed tower package. Supports up to 17 square feet of antenna load. Includes 12-25G, 1-25AG2, 1-BPC25G, 4-GA25GD, 1700'-3/16"EHS, 24-BG2142, 24-5/16"TH, 12-1/2TBE&J, 3-TBSAFETY, 3-GAC3455TOP, 1-AGK1GGX, 3-BGK3GGX, 3-CPC.5/.75, 1-3/4X12PP and all assembly hardware. PLEASE NOTE: Rohn tower packages are drop shipped directly from the factory to reduce freight cost. Typical delivery time runs approximately 6 weeks.
ROHN 25G90R130 TECHNICAL SPECIFICATIONS
height130'
section width12"
section height10'
section weight40 pounds
base footing2'6" x 2'6" x 4', (1 cu. yd.)
anchor footings (3)1'6" x 4' x 6', (1.33 cu. yds.)
windload capacity, 90 MPH (Revision F)17 sq. ft.
windload capacity, 90 MPH (Revision G, Exp. B)16.2 sq. ft.
windload capacity, 90 MPH (Revision G, Exp. C)12.9 sq. ft.
package weight836 pounds
