Rohn 25G130R090

$5,029.00
OR
Quick Overview
Guyed Tower Package
• Handles up to 9.2 sq. ft.
• Rated at 130 MPH
• Complete Package
• Shipped Direct to Save Freight Cost

Rohn 25G130R090

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Rohn 25G130R090

Details

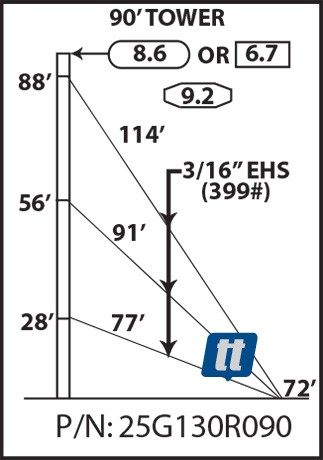

The Rohn 25G130R090 is a complete 90' guyed tower package. Supports up to 9.2 square feet of antenna load. Includes 8-25G, 1-25AG2, 1-BPC25G, 3-GA25GD, 900'-3/16"EHS, 18-BG2142, 18-5/16"TH, 9-1/2TBE&J, 3-TBSAFETY, 3-GAC3455TOP, 1-AGK1GGX, 3-BGK3GGX, 3-CPC.5/.75, 1-3/4X12PP and all assembly hardware. PLEASE NOTE: Rohn tower packages are drop shipped directly from the factory to reduce freight cost. Typical delivery time runs approximately 6 weeks.
ROHN 25G130R090 TECHNICAL SPECIFICATIONS
height90'
section width12"
section height10'
section weight40 pounds
base footing2'6" x 2'6" x 4', (1 cu. yd.)
anchor footings (3)1'6" x 4' x 6', (1.33 cu. yds.)
windload capacity, 130 MPH (Revision F)9.2 sq. ft.
windload capacity, 130 MPH (Revision G, Exp. B)8.6 sq. ft.
windload capacity, 130 MPH (Revision G, Exp. C)6.7 sq. ft.
package weight573 pounds
