Rohn 25G110R120

$6,069.00
OR
Quick Overview
Guyed Tower Package
• Handles up to 10.4 sq. ft.
• Rated at 110 MPH
• Complete Package
• Shipped Direct to Save Freight Cost

Rohn 25G110R120

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Rohn 25G110R120

Details

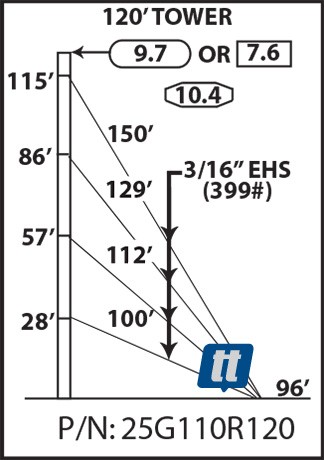

The Rohn 25G110R120 is a complete 120' guyed tower package. Supports up to 10.4 square feet of antenna load. Includes 11-25G, 1-25AG2, 1-BPC25G, 4-GA25GD, 1575'-3/16"EHS, 24-BG2142, 24-5/16"TH, 12-1/2TBE&J, 3-TBSAFETY, 3-GAC3455TOP, 1-AGK1GGX, 3-BGK3GGX, 3-CPC.5/.75, 1-3/4X12PP and all assembly hardware. PLEASE NOTE: Rohn tower packages are drop shipped directly from the factory to reduce freight cost. Typical delivery time runs approximately 6 weeks.
ROHN 25G110R120 TECHNICAL SPECIFICATIONS
height120'
section width12"
section height10'
section weight40 pounds
base footing2'6" x 2'6" x 4', (1 cu. yd.)
anchor footings (3)1'6" x 4' x 6', (1.33 cu. yds.)
windload capacity, 110 MPH (Revision F)10.4 sq. ft.
windload capacity, 110 MPH (Revision G, Exp. B)9.7 sq. ft.
windload capacity, 110 MPH (Revision G, Exp. C)7.6 sq. ft.
package weight722 pounds
