Details

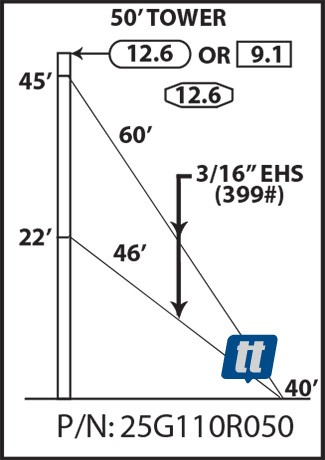

The Rohn 25G110R050 is a complete 50' guyed tower package. Supports up to 12.6 square feet of antenna load. Includes 4-25G, 1-25AG2, 1-BPC25G, 2-GA25GD, 350'-3/16"EHS, 12-BG2142, 12-5/16"TH, 6-1/2TBE&J, 3-TBSAFETY, 3-GAC3455TOP, 1-AGK1GGX, 3-BGK3GGX, 3-CPC.5/.75, 1-3/4X12PP and all assembly hardware. PLEASE NOTE: Rohn tower packages are drop shipped directly from the factory to reduce freight cost. Typical delivery time runs approximately 6 weeks.
ROHN 25G110R050 TECHNICAL SPECIFICATIONS | |
height | 50' |
section width | 12" |
section height | 10' |
section weight | 40 pounds |
base footing | 2'6" x 2'6" x 4', (1 cu. yd.) |
anchor footings (3) | 1'6" x 4' x 6', (1.33 cu. yds.) |
windload capacity, 110 MPH (Revision F) | 12.6 sq. ft. |
windload capacity, 110 MPH (Revision G, Exp. B) | 12.6 sq. ft. |
windload capacity, 110 MPH (Revision G, Exp. C) | 9.1 sq. ft. |
package weight | 303 pounds |
