Rohn 25G

Quick Overview
Guyed Tower Section

Rohn 25G

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Rohn 25G

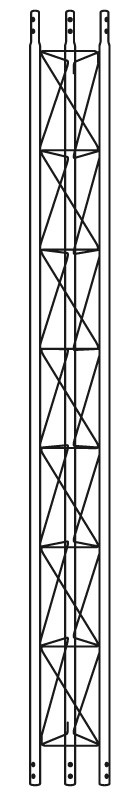

Rohn 25G tower is a popular choice for large VHF/UHF antennas and medium sized HF antennas. The tower is a 12" face triangular design using 1-1/4" steel legs and continuous 5/16" steel rod bracing. Middle sections measure 10 feet long, top sections are approximately nine. Sections fit together with a double-bolted joint. The tower is a guyed design; three anchors spaced radially 120° apart, are set out from the base 80% of the tower height. A wide variety of optional sections and options make the 25G an extremely versatile tower. Sections supplied with nuts and bolts.
