Rohn RSL20H12

$1,159.00
OR
Quick Overview
• 20’ Height
• Handles up to 80 sq. ft.
• Constructed of hot-dip galvanized steel

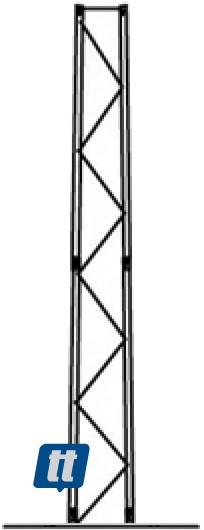

Rohn RSL20A12

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Rohn RSL20A12

Details

The Rohn RSL20H12 is a heavy duty 20' self-supporting tower designed for use in broadband, public safety and security applications, reaching above line-of-site obstacles such as tree tops, hilly terrain and buildings. Shipped knocked-down to reduce shipping cost and time. PLEASE NOTE: Rohn RSL towers are drop shipped directly from the factory to save you money. Typical delivery time runs approximately 6 weeks.
Rohn RSL20H12 TECHNICAL SPECIFICATIONS
height20'
section size, top21"
section size, bottom24"
base footing7'6"' x 7'6" x 4'4", (9 cu. yds.)
windload capacity, 90 MPH (Cat. 1/Exp. B)80 sq. ft.
windload capacity, 100 MPH (Cat. 1/Exp. B)80 sq. ft.
windload capacity, 110 MPH (Cat. 1/Exp. B)80 sq. ft.
windload capacity, 120 MPH (Cat. 1/Exp. B)80 sq. ft.
windload capacity, 130 MPH (Cat. 1/Exp. B)80 sq. ft.
windload capacity, 140 MPH (Cat. 1/Exp. B)80 sq. ft.
windload capacity, 90 MPH (Cat. 1/Exp. C)80 sq. ft.
windload capacity, 100 MPH (Cat. 1/Exp. C)80 sq. ft.
windload capacity, 110 MPH (Cat. 1/Exp. C)80 sq. ft.
windload capacity, 120 MPH (Cat. 1/Exp. C)80 sq. ft.
windload capacity, 130 MPH (Cat. 1/Exp. C)80 sq. ft.
windload capacity, 140 MPH (Cat. 1/Exp. C)80 sq. ft.
weight304 pounds
