Rohn 55G90R160

Availability: In stock

$7,449.00
OR
Quick Overview
Guyed Tower Package
• Handles up to 33.9 sq. ft.
• Rated at 90 MPH
• Complete Package
• Shipped Direct to Save Freight Cost

Rohn 55G90R160

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Rohn 55G90R160

Details

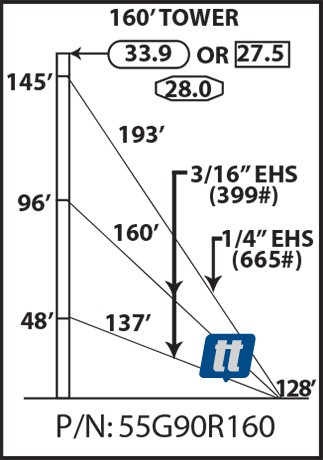

The Rohn 55G90R160 is a complete 160' guyed tower package. Supports up to 33.9 square feet of antenna load. Includes 16-55G, 1-BPC55G, 1-APL55G, 3-GA55GD, 950'-3/16"EHS, 625'-1/4"EHS, 12-BG2142, 6-BG2144, 12-5/16"TH, 6-3/8"TH, 9-1/2TBE&J, 3-TBSAFETY, 3-GAC3455TOP, 1-AGK1GGX, 3-BGK3GGX, 3-CPC.5/.75, 1-3/4X12PP and all assembly hardware. PLEASE NOTE: Rohn tower packages are drop shipped directly from the factory to reduce freight cost. Typical delivery time runs approximately 2 weeks.
ROHN 55G90R160 TECHNICAL SPECIFICATIONS
height160'
section width18"
section height10'
section weight100 pounds
base footing3' x 3' x 4', (1.2 cu. yds.)
anchor footings (3)1'6" x 4' x 6', (1.33 cu. yds.)
windload capacity, 90 MPH (Revision F)28 sq. ft.
windload capacity, 90 MPH (Revision G, Exp. B)33.9 sq. ft.
windload capacity, 90 MPH (Revision G, Exp. C)27.5 sq. ft.
package weight2123 pounds
