Rohn 55G90R120

Availability: In stock

$6,269.00
OR
Quick Overview
Guyed Tower Package
• Handles up to 37 sq. ft.
• Rated at 90 MPH
• Complete Package
• Shipped Direct to Save Freight Cost

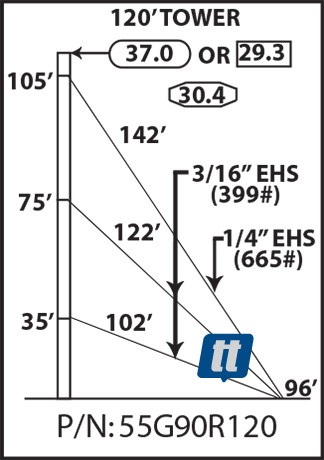

Rohn 55G90R120

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Rohn 55G90R120

Details

The Rohn 55G90R120 is a complete 120' guyed tower package. Supports up to 37 square feet of antenna load. Includes 12-55G, 1-BPC55G, 1-APL55G, 3-GA55GD, 725'-3/16"EHS, 500'-1/4"EHS, 12-BG2142, 6-BG2144, 12-5/16"TH, 6-3/8"TH, 9-1/2TBE&J, 3-TBSAFETY, 3-GAC3455TOP, 1-AGK1GGX, 3-BGK3GGX, 3-CPC.5/.75, 1-3/4X12PP and all assembly hardware. PLEASE NOTE: Rohn tower packages are drop shipped directly from the factory to reduce freight cost. Typical delivery time runs approximately 2 weeks.
ROHN 55G90R120 TECHNICAL SPECIFICATIONS
height120'
section width18"
section height10'
section weight100 pounds
base footing2'6" x 2'6" x 4', (1 cu. yd.)
anchor footings (3)1'6" x 4' x 6', (1.33 cu. yds.)
windload capacity, 90 MPH (Revision F)30.4 sq. ft.
windload capacity, 90 MPH (Revision G, Exp. B)37 sq. ft.
windload capacity, 90 MPH (Revision G, Exp. C)29.3 sq. ft.
package weight1687 pounds
