Rohn 55G90R110

Availability: In stock

$5,439.00
OR
Quick Overview
Guyed Tower Package
• Handles up to 37.9 sq. ft.
• Rated at 90 MPH
• Complete Package
• Shipped Direct to Save Freight Cost

Rohn 55G90R110

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Rohn 55G90R110

Details

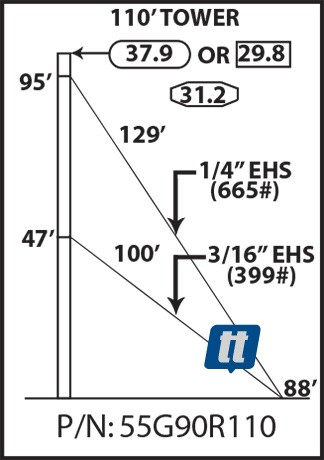

The Rohn 55G90R110 is a complete 110' guyed tower package. Supports up to 37.9 square feet of antenna load. Includes 11-55G, 1-BPC55G, 1-APL55G, 2-GA55GD, 325'-3/16"EHS, 425'-1/4"EHS, 6-BG2142, 6-BG2144, 6-5/16"TH, 6-3/8"TH, 6-1/2TBE&J, 3-TBSAFETY, 3-GAC3455TOP, 1-AGK1GGX, 3-BGK3GGX, 3-CPC.5/.75, 1-3/4X12PP and all assembly hardware. PLEASE NOTE: Rohn tower packages are drop shipped directly from the factory to reduce freight cost. Typical delivery time runs approximately 2 weeks.
ROHN 55G90R110 TECHNICAL SPECIFICATIONS
height110'
section width18"
section height10'
section weight100 pounds
base footing2'6" x 2'6" x 4', (1 cu. yd.)
anchor footings (3)1'6" x 4' x 6', (1.33 cu. yds.)
windload capacity, 90 MPH (Revision F)31.2 sq. ft.
windload capacity, 90 MPH (Revision G, Exp. B)37.9 sq. ft.
windload capacity, 90 MPH (Revision G, Exp. C)29.8 sq. ft.
package weight1504 pounds
