Rohn 45G90R280

$10,629.00
OR
Quick Overview
Guyed Tower Package
• Handles up to 18 sq. ft.
• Rated at 90 MPH
• Complete Package
• Shipped Direct to Save Freight Cost

Rohn 45G90R280

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Rohn 45G90R280

Details

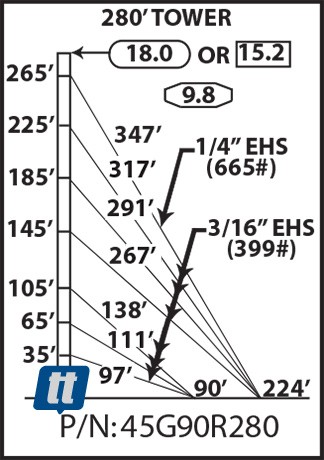

The Rohn 45G90R280 is a complete 280' guyed tower package. Supports up to 18 square feet of antenna load. Includes 28-45G, 1-APL45G, 1-BPC45G, 7-GA45GD, 3900'-3/16"EHS, 1125'-1/4"EHS, 36-BG2142, 6-BG2144, 36-5/16"TH, 6-3/8"TH, 21-1/2TBE&J, 6-TBSAFETY, 6-GAC3455TOP, 2-AGK1GGX, 3-BGK3GGX, 6-CPC.5/.75, 1-3/4X12PP and all assembly hardware. PLEASE NOTE: Rohn tower packages are drop shipped directly from the factory to reduce freight cost. Typical delivery time runs approximately 2 weeks.
ROHN 45G90R280 TECHNICAL SPECIFICATIONS
height280'
section width18"
section height10'
section weight70 pounds
base footing3'6" x 3'6" x 4', (1.6 cu. yd.)
anchor footings (6)1'6" x 4' x 6', (1.33 cu. yds.)
windload capacity, 90 MPH (Revision F)9.8 sq. ft.
windload capacity, 90 MPH (Revision G, Exp. B)18 sq. ft.
windload capacity, 90 MPH (Revision G, Exp. C)15.2 sq. ft.
package weight3053 pounds
