Rohn 45G90R230

$13,139.00
OR
Quick Overview
Guyed Tower Package
• Handles up to 19.1 sq. ft.
• Rated at 90 MPH
• Complete Package
• Shipped Direct to Save Freight Cost

Rohn 45G90R230

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Rohn 45G90R230

Details

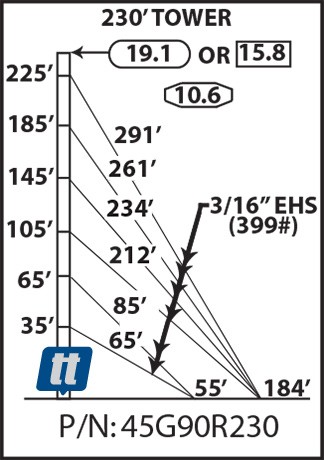

The Rohn 45G90R230 is a complete 230' guyed tower package. Supports up to 19.1 square feet of antenna load. Includes 23-45G, 1-APL45G, 1-BPC45G, 6-GA45GD, 3675'-3/16"EHS, 36-BG2142, 36-5/16"TH, 6-3/8"TH, 18-1/2TBE&J, 6-TBSAFETY, 6-GAC3455TOP, 2-AGK1GGX, 3-BGK3GGX, 6-CPC.5/.75, 1-3/4X12PP and all assembly hardware. PLEASE NOTE: Rohn tower packages are drop shipped directly from the factory to reduce freight cost. Typical delivery time runs approximately 6 weeks.
ROHN 45G90R230 TECHNICAL SPECIFICATIONS
height230'
section width18"
section height10'
section weight70 pounds
base footing3' x 3' x 4', (1.2 cu. yd.)
anchor footings (6)1'6" x 4' x 6', (1.33 cu. yds.)
windload capacity, 90 MPH (Revision F)10.6 sq. ft.
windload capacity, 90 MPH (Revision G, Exp. B)19.1 sq. ft.
windload capacity, 90 MPH (Revision G, Exp. C)15.8 sq. ft.
package weight2515 pounds
