Rohn 45G130R130

$5,669.00
OR
Quick Overview
Guyed Tower Package
• Handles up to 10.9 sq. ft.
• Rated at 130 MPH
• Complete Package
• Shipped Direct to Save Freight Cost

Rohn 45G130R130

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Rohn 45G130R130

Details

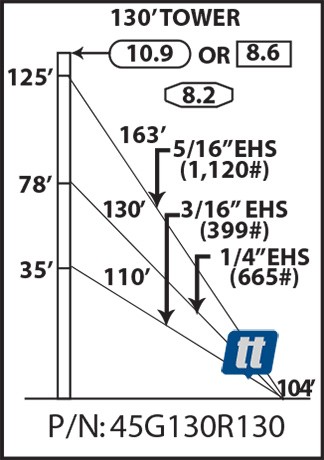

The Rohn 45G130R130 is a complete 130' guyed tower package. Supports up to 10.9 square feet of antenna load. Includes 12-45G, 1-45GL5, 1-BPC45G, 1-APL45G, 3-GA45GD, 350'-3/16"EHS, 425'-1/4"EHS, 525'-5/16"EHS, 6-BG2142, 6-BG2144, 6-BG2146, 6-5/16"TH, 6-3/8"TH, 6-7/16"TH, 9-5/8TBE&J, 3-TBSAFETY, 3-GAC3455TOP, 1-AGK1GGX, 3-BGK3GGX, 3-CPC1/1.25, 1-3/4X12PP and all assembly hardware. PLEASE NOTE: Rohn tower packages are drop shipped directly from the factory to reduce freight cost. Typical delivery time runs approximately 2 weeks.
ROHN 45G130R130 TECHNICAL SPECIFICATIONS
height130'
section width18"
section height10'
section weight70 pounds
base footing3' x 3' x 4', (1.2 cu. yds.)
anchor footings (3)1'6" x 3' x 6', (1 cu. yd.)
windload capacity, 130 MPH (Revision F)8.2 sq. ft.
windload capacity, 130 MPH (Revision G, Exp. B)10.9 sq. ft.
windload capacity, 130 MPH (Revision G, Exp. C)8.6 sq. ft.
package weight1381 pounds
