Rohn 45G130R070

$4,199.00
OR
Quick Overview
Guyed Tower Package
• Handles up to 13 sq. ft.
• Rated at 130 MPH
• Complete Package
• Shipped Direct to Save Freight Cost

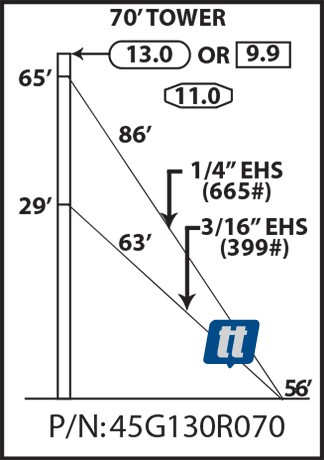

Rohn 45G130R070

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Rohn 45G130R070

Details

The Rohn 45G130R070 is a complete 70' guyed tower package. Supports up to 13 square feet of antenna load. Includes 6-45G, 1-45AG2, 1-BPC45G, 2-GA45GD, 225'-3/16"EHS, 275'-1/4"EHS, 6-BG2142, 6-BG2144, 6-5/16"TH, 6-3/8"TH, 3-1/2TBE&J, 3-TBSAFETY, 3-GAC3455TOP, 1-AGK1GGX, 3-BGK3GGX, 3-CPC.5/.75, 1-3/4X12PP and all assembly hardware. PLEASE NOTE: Rohn tower packages are drop shipped directly from the factory to reduce freight cost. Typical delivery time runs approximately 2 weeks.
ROHN 45G130R070 TECHNICAL SPECIFICATIONS
height70'
section width18"
section height10'
section weight70 pounds
base footing2'6" x 2'6" x 4', (1 cu. yd.)
anchor footings (3)1'6" x 4' x 6', (1.33 cu. yds.)
windload capacity, 130 MPH (Revision F)11 sq. ft.
windload capacity, 130 MPH (Revision G, Exp. B)13 sq. ft.
windload capacity, 130 MPH (Revision G, Exp. C)9.9 sq. ft.
package weight827 pounds
