Rohn 45G130R040

Availability: In stock

$2,149.00
OR
Quick Overview
Guyed Tower Package
• Handles up to 15.3 sq. ft.
• Rated at 130 MPH
• Complete Package
• Shipped Direct to Save Freight Cost

Rohn 45G130R040

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Rohn 45G130R040

Details

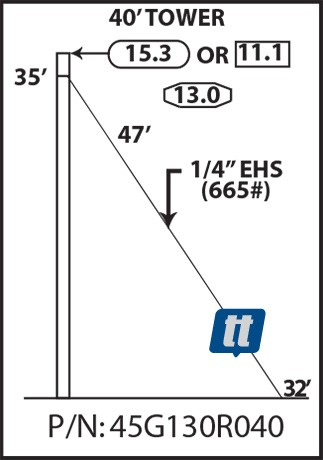

The Rohn 45G130R040 is a complete 40' guyed tower package. Supports up to 15.3 square feet of antenna load. Includes 3-45G, 1-45AG2, 1-BPC45G, 1-GA45GD, 150'-1/4"EHS, 6-BG2144, 6-3/8"TH, 3-1/2TBE&J, 3-TBSAFETY, 3-GAC3455TOP, 1-AGK1GGX, 3-BGK3GGX, 3-CPC.5/.75, 1-3/4X12PP and all assembly hardware. PLEASE NOTE: Rohn tower packages are drop shipped directly from the factory to reduce freight cost. Typical delivery time runs approximately 2 weeks.
ROHN 45G130R040 TECHNICAL SPECIFICATIONS
height40'
section width18"
section height10'
section weight70 pounds
base footing2'6" x 2'6" x 4', (1 cu. yd.)
anchor footings (3)1'6" x 4' x 6', (1.33 cu. yds.)
windload capacity, 130 MPH (Revision F)13 sq. ft.
windload capacity, 130 MPH (Revision G, Exp. B)15.3 sq. ft.
windload capacity, 130 MPH (Revision G, Exp. C)11.1 sq. ft.
package weight474 pounds
