Rohn 45G110R170

$10,099.00
OR
Quick Overview
Guyed Tower Package
• Handles up to 14 sq. ft.
• Rated at 110 MPH
• Complete Package
• Shipped Direct to Save Freight Cost

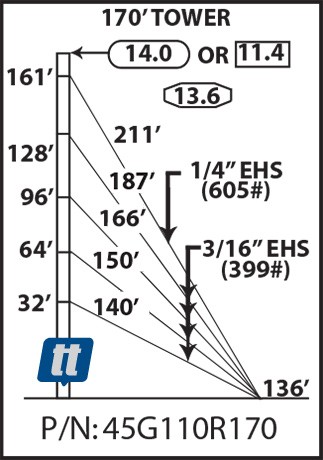

Rohn 45G110R170

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Rohn 45G110R170

Details

The Rohn 45G110R170 is a complete 170' guyed tower package. Supports up to 14 square feet of antenna load. Includes 16-45G, 1-45AG2, 1-BPC45G, 5-GA45GD, 2050'-3/16"EHS, 675'-1/4"EHS, 24-BG2142, 6-BG2144, 24-5/16"TH, 6-3/8"TH, 15-5/8TBE&J, 3-TBSAFETY, 3-GAC3455TOP, 1-AGK1GGX, 3-BGK3GGX, 3-CPC1/1.25, 1-3/4X12PP and all assembly hardware. PLEASE NOTE: Rohn tower packages are drop shipped directly from the factory to reduce freight cost. Typical delivery time runs approximately 2 weeks.
ROHN 45G110R170 TECHNICAL SPECIFICATIONS
height170'
section width18"
section height10'
section weight70 pounds
base footing3' x 3' x 4', (1.2 cu. yds.)
anchor footings (3)1'6" x 3' x 6', (1 cu. yd.)
windload capacity, 110 MPH (Revision F)13.6 sq. ft.
windload capacity, 110 MPH (Revision G, Exp. B)14 sq. ft.
windload capacity, 110 MPH (Revision G, Exp. C)11.4 sq. ft.
package weight1898 pounds
