Rohn 25G90R140

$6,399.00
OR
Quick Overview
Guyed Tower Package
• Handles up to 16.6 sq. ft.
• Rated at 90 MPH
• Complete Package
• Shipped Direct to Save Freight Cost

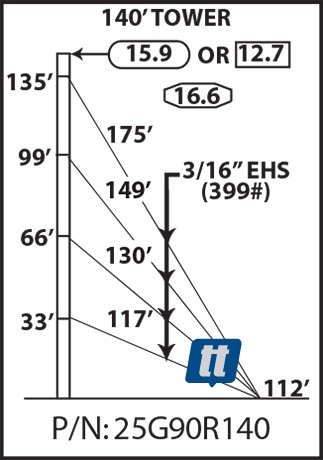

Rohn 25G90R140

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Rohn 25G90R140

Details

The Rohn 25G90R140 is a complete 140' guyed tower package. Supports up to 16.6 square feet of antenna load. Includes 13-25G, 1-25AG2, 1-BPC25G, 4-GA25GD, 1825'-3/16"EHS, 24-BG2142, 24-5/16"TH, 12-1/2TBE&J, 3-TBSAFETY, 3-GAC3455TOP, 1-AGK1GGX, 3-BGK3GGX, 3-CPC.5/.75, 1-3/4X12PP and all assembly hardware. PLEASE NOTE: Rohn tower packages are drop shipped directly from the factory to reduce freight cost. Typical delivery time runs approximately 6 weeks.
ROHN 25G90R140 TECHNICAL SPECIFICATIONS
height140'
section width12"
section height10'
section weight40 pounds
base footing2'6" x 2'6" x 4', (1 cu. yd.)
anchor footings (3)1'6" x 4' x 6', (1.33 cu. yds.)
windload capacity, 90 MPH (Revision F)16.6 sq. ft.
windload capacity, 90 MPH (Revision G, Exp. B)15.9 sq. ft.
windload capacity, 90 MPH (Revision G, Exp. C)12.7 sq. ft.
package weight957 pounds
