Rohn 25G90R070

Availability: In stock

$2,649.00
OR
Quick Overview
Guyed Tower Package
• Handles up to 19.4 sq. ft.
• Rated at 90 MPH
• Complete Package
• Shipped Direct to Save Freight Cost

Rohn 25G90R070

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Rohn 25G90R070

Details

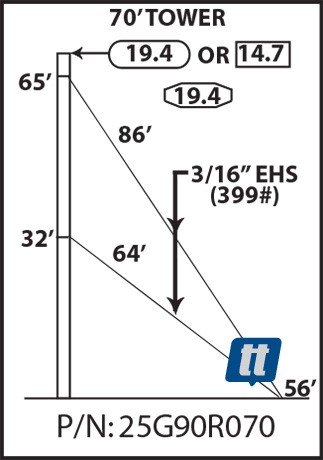

The Rohn 25G90R070 is a complete 70' guyed tower package. Supports up to 19.4 square feet of antenna load. Includes 6-25G, 1-25AG2, 1-BPC25G, 2-GA25GD, 500'-3/16"EHS, 12-BG2142, 12-5/16"TH, 6-1/2TBE&J, 3-TBSAFETY, 3-GAC3455TOP, 1-AGK1GGX, 3-BGK3GGX, 3-CPC.5/.75, 1-3/4X12PP and all assembly hardware. PLEASE NOTE: Rohn tower packages are drop shipped directly from the factory to reduce freight cost. Typical delivery time runs approximately 2 weeks.
ROHN 25G90R070 TECHNICAL SPECIFICATIONS
height70'
section width12"
section height10'
section weight40 pounds
base footing2'6" x 2'6" x 4', (1 cu. yd.)
anchor footings (3)1'6" x 4' x 6', (1.33 cu. yds.)
windload capacity, 90 MPH (Revision F)19.4 sq. ft.
windload capacity, 90 MPH (Revision G, Exp. B)19.4 sq. ft.
windload capacity, 90 MPH (Revision G, Exp. C)14.7 sq. ft.
package weight434 pounds
