Rohn 25G110R160

$6,309.00
OR
Quick Overview
Guyed Tower Package
• Handles up to 9.8 sq. ft.
• Rated at 110 MPH
• Complete Package
• Shipped Direct to Save Freight Cost

Rohn 25G110R160

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Rohn 25G110R160

Details

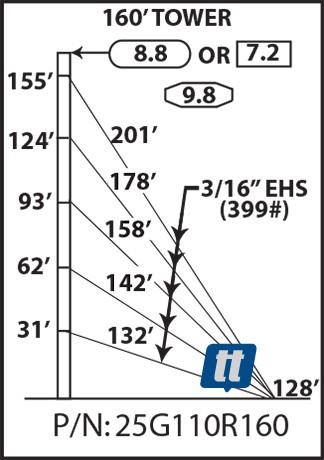

The Rohn 25G110R160 is a complete 160' guyed tower package. Supports up to 9.8 square feet of antenna load. Includes 15-25G, 1-25AG2, 1-BPC25G, 5-GA25GD, 2600'-3/16"EHS, 30-BG2142, 30-5/16"TH, 15-1/2TBE&J, 3-TBSAFETY, 3-GAC3455TOP, 1-AGK1GGX, 3-BGK3GGX, 3-CPC.5/.75, 1-3/4X12PP and all assembly hardware. PLEASE NOTE: Rohn tower packages are drop shipped directly from the factory to reduce freight cost. Typical delivery time runs approximately 2 weeks.
ROHN 25G110R160 TECHNICAL SPECIFICATIONS
height160'
section width12"
section height10'
section weight40 pounds
base footing2'6" x 2'6" x 4', (1 cu. yd.)
anchor footings (3)1'6" x 4' x 6', (1.33 cu. yds.)
windload capacity, 110 MPH (Revision F)9.8 sq. ft.
windload capacity, 110 MPH (Revision G, Exp. B)8.8 sq. ft.
windload capacity, 110 MPH (Revision G, Exp. C)7.2 sq. ft.
package weight1111 pounds
