Rohn 25G110R090

$3,289.00
OR
Quick Overview
Guyed Tower Package
• Handles up to 11.2 sq. ft.
• Rated at 90 MPH
• Complete Package
• Shipped Direct to Save Freight Cost

Rohn 25G110R090

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Rohn 25G110R090

Details

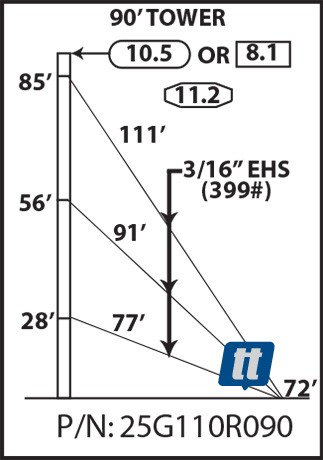

The Rohn 25G110R090 is a complete 90' guyed tower package. Supports up to 11.2 square feet of antenna load. Includes 8-25G, 1-25AG2, 1-BPC25G, 3-GA25GD, 900'-3/16"EHS, 18-BG2142, 18-5/16"TH, 9-1/2TBE&J, 3-TBSAFETY, 3-GAC3455TOP, 1-AGK1GGX, 3-BGK3GGX, 3-CPC.5/.75, 1-3/4X12PP and all assembly hardware. PLEASE NOTE: Rohn tower packages are drop shipped directly from the factory to reduce freight cost. Typical delivery time runs approximately 2 weeks.
ROHN 25G110R090 TECHNICAL SPECIFICATIONS
height90'
section width12"
section height10'
section weight40 pounds
base footing2'6" x 2'6" x 4', (1 cu. yd.)
anchor footings (3)1'6" x 4' x 6', (1.33 cu. yds.)
windload capacity, 110 MPH (Revision F)
windload capacity, 110 MPH (Revision G, Exp. B)10.5 sq. ft.
windload capacity, 110 MPH (Revision G, Exp. C)8.1 sq. ft.
package weight570 pounds
